Box Blur

Overview

The Box Blur sample demonstrates selective region blurring using CV-CUDA’s GPU-accelerated box blur operator. Rather than blurring the entire image, the operator accepts a list of BlurBoxI rectangles per image in the batch and applies a mean (box) filter only inside those regions. Pixels outside the declared boxes are copied through unchanged, making the operator ideal for privacy redaction, watermark concealment, and artistic effects.

Usage

Basic Usage

Blur three rectangular regions of the default input image:

python3 boxblur.py -i input.jpg

Custom Input and Output

Specify input and output paths explicitly:

python3 boxblur.py -i image.jpg -o cat_boxblur.jpg

Command-Line Arguments

Argument	Short Form	Default	Description
--input	-i	tabby_tiger_cat.jpg	Input image file path
--output	-o	cvcuda/.cache/cat_boxblur.jpg	Output image file path

Implementation

Box Blur on Selected Regions

# boxblur operates on NHWC batches, so wrap the HWC image in a batch dimension.
# cvcuda.stack adds a leading N=1 dimension and returns an NHWC tensor.
nhwc_image: cvcuda.Tensor = cvcuda.stack([input_image])
h, w = nhwc_image.shape[1], nhwc_image.shape[2]

# Each BlurBoxI specifies (x, y, width, height) in pixel coordinates and the
# square box-filter kernel size.  Larger kernelSize → stronger blur effect.
# Three overlapping boxes of increasing size cover distinct regions of the cat.
bboxes = cvcuda.BlurBoxesI(
    boxes=[
        [
            # Upper-left patch — moderate blur
            cvcuda.BlurBoxI(box=(w // 8, h // 8, w // 5, h // 5), kernelSize=21),
            # Centre of the image — strong blur (e.g. face anonymisation)
            cvcuda.BlurBoxI(box=(w // 4, h // 4, w // 2, h // 2), kernelSize=45),
            # Lower-right corner — light blur
            cvcuda.BlurBoxI(
                box=(w * 3 // 4, h * 3 // 4, w // 6, h // 6), kernelSize=11
            ),
        ]
    ]
)

Key points:

1. Batch dimension required: cvcuda.boxblur expects NHWC input; use cvcuda.stack([hwc_image]) to add a leading batch dimension before calling the operator.

2. BlurBoxesI structure: One inner list of BlurBoxI objects per image in the batch; each box is (x, y, width, height) in pixel coordinates plus a kernelSize for the square mean filter.

3. Selective blurring: Only the pixels inside each declared rectangle are filtered; all other pixels are passed through untouched.

4. Kernel size trade-off: Larger kernelSize produces stronger, more noticeable blur at the cost of slightly more compute; the kernel must be odd and at least 1.

5. Layout restoration: After blurring, reshape(shape[1:], "HWC") strips the batch dimension so the result can be saved directly with write_image.

Expected Output

The output image is identical to the input except for three blurred rectangles: a moderate patch in the upper-left, a strong central blur, and a light blur in the lower-right corner.

Original Input Image

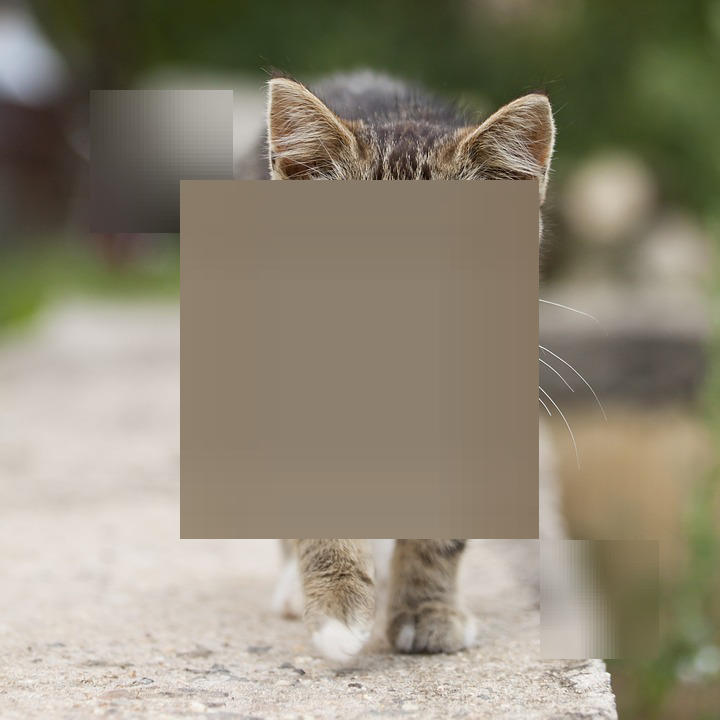

Output: Selective Box Blur Applied

CV-CUDA Operators Used

Operator	Purpose
cvcuda.boxblur()	Apply a mean (box) filter to user-defined rectangular regions within an image

Common Utilities Used

• read_image() - Load image as CV-CUDA tensor

• write_image() - Save the blurred result image

• parse_image_args() - Parse --input / --output CLI arguments
