Threshold

Overview

The Threshold sample demonstrates pixel-level intensity thresholding using CV-CUDA’s GPU-accelerated threshold operator. A binary threshold is applied: every pixel whose value exceeds a configurable threshold is set to a maximum value (255), and all others are set to 0, producing a clean binary mask.

Usage

Basic Usage

Apply a binary threshold to an image (default threshold = 128):

python3 threshold.py -i input.jpg

Custom Output Path

Specify a custom output file:

python3 threshold.py -i input.jpg -o thresholded.jpg

Command-Line Arguments

Argument

Short Form

Default

Description

--input

-i


Input image file path

--output

-o

cvcuda/.cache/cat_threshold.jpg

Output image file path

Implementation

Threshold Operator

# threshold() requires a batch dimension (NHWC), so wrap the HWC image.
# One thresh/maxval scalar is needed per image in the batch.
nhwc_image: cvcuda.Tensor = input_image.reshape((1, *input_image.shape), "NHWC")
batch_size = nhwc_image.shape[0]

# Allocate per-image threshold and maxval tensors on the GPU (dtype F64, layout "N").
thresh_host = np.array([128.0] * batch_size, dtype=np.float64)
thresh_tensor = cvcuda.Tensor((batch_size,), dtype=np.float64, layout="N")
cuda_memcpy_h2d(thresh_host, thresh_tensor.cuda())

maxval_host = np.array([255.0] * batch_size, dtype=np.float64)
maxval_tensor = cvcuda.Tensor((batch_size,), dtype=np.float64, layout="N")
cuda_memcpy_h2d(maxval_host, maxval_tensor.cuda())

Key points:

  1. Batch dimension required: cvcuda.threshold expects NHWC layout, so a HWC image must be reshaped with a leading batch dimension before calling the operator.

  2. Per-image parameters: thresh and maxval are GPU tensors of shape (N,) and dtype F64, allowing each image in a batch to use a different threshold value.

  3. Upload via cuda_memcpy_h2d: NumPy arrays holding the scalar parameters are copied to GPU memory using cuda_memcpy_h2d before the operator is called.

  4. BINARY type: cvcuda.ThresholdType.BINARY sets pixels above the threshold to maxval and all others to zero; other types (BINARY_INV, TRUNC, TOZERO, TOZERO_INV, OTSU, TRIANGLE) are also available.

  5. Output shape preserved: The operator returns a tensor with the same shape, layout, and dtype as the input, which is reshaped back to HWC before writing.

Expected Output

The output is a binary image where bright regions (pixel value > 128) appear white and dark regions appear black:

../../_images/tabby_tiger_cat.jpg

Original Input Image

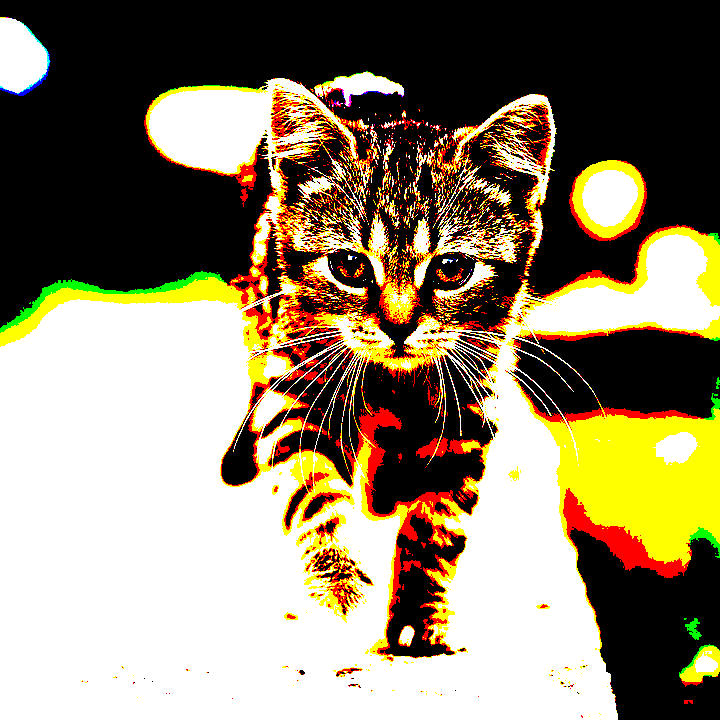

../../_images/cat_threshold.jpg

Output: Binary Threshold (thresh=128, maxval=255)

CV-CUDA Operators Used

Operator

Purpose

cvcuda.threshold()

Apply pixel-intensity thresholding with configurable per-image threshold and maxval

Common Utilities Used

  • read_image() - Load image as CV-CUDA tensor

  • write_image() - Save thresholded image

  • cuda_memcpy_h2d - Upload per-image threshold and maxval scalars to GPU memory
