Warp Affine

Overview

The Warp Affine sample demonstrates GPU-accelerated affine image transformation using CV-CUDA’s warp_affine operator. The sample builds a 2×3 float32 transformation matrix that rotates the image 15 degrees counter-clockwise about its centre and shifts it slightly to the right, then applies it with bilinear interpolation and constant-value border filling.

Usage

Basic Usage

Apply the default rotation+translation warp to an image:

python3 warp_affine.py -i input.jpg

Custom Output Path

Write the warped result to a specific location:

python3 warp_affine.py -i input.jpg -o warped.jpg

Command-Line Arguments

Argument

Short Form

Default

Description

--input

-i


Input image file path

--output

-o

cvcuda/.cache/cat_warp_affine.jpg

Output image file path

Implementation

Affine Matrix Setup

# Build a 2x3 float32 affine matrix that rotates the image 15 degrees
# counter-clockwise about the image centre and shifts it slightly right.
# OpenCV convention: the matrix maps *destination* pixel coordinates to
# *source* pixel coordinates (inverse warp), so we use a rotation of -angle.
h, w = input_image.shape[0], input_image.shape[1]
angle_deg = 15.0
angle_rad = math.radians(angle_deg)
cos_a = math.cos(angle_rad)
sin_a = math.sin(angle_rad)
cx, cy = w / 2.0, h / 2.0
# Rotation about the image centre + a small horizontal translation
tx = 20.0  # pixels to shift right
xform = np.array(
    [
        [cos_a, sin_a, (1 - cos_a) * cx - sin_a * cy + tx],
        [-sin_a, cos_a, sin_a * cx + (1 - cos_a) * cy],
    ],
    dtype=np.float32,
)

Warp Affine Call

# Build a 2x3 float32 affine matrix that rotates the image 15 degrees
# counter-clockwise about the image centre and shifts it slightly right.
# OpenCV convention: the matrix maps *destination* pixel coordinates to
# *source* pixel coordinates (inverse warp), so we use a rotation of -angle.
h, w = input_image.shape[0], input_image.shape[1]
angle_deg = 15.0
angle_rad = math.radians(angle_deg)
cos_a = math.cos(angle_rad)
sin_a = math.sin(angle_rad)
cx, cy = w / 2.0, h / 2.0
# Rotation about the image centre + a small horizontal translation
tx = 20.0  # pixels to shift right
xform = np.array(
    [
        [cos_a, sin_a, (1 - cos_a) * cx - sin_a * cy + tx],
        [-sin_a, cos_a, sin_a * cx + (1 - cos_a) * cy],
    ],
    dtype=np.float32,
)

Key points:

  1. 2×3 Matrix: xform is a np.float32 array of shape (2, 3) that encodes the full affine map (rotation, scale, shear, translation) in one compact structure.

  2. Centre-relative rotation: Translating to the image centre before rotating avoids the image drifting off-canvas; the standard formula embeds the centre correction directly in the translation column of the matrix.

  3. Interpolation flag: cvcuda.Interp.LINEAR gives smooth bilinear interpolation; NEAREST is faster but produces aliasing artefacts on smooth gradients.

  4. Border handling: cvcuda.Border.CONSTANT with border_value=[0] fills any pixels that map outside the source image with black — useful for preserving the original framing.

Expected Output

The output shows the image rotated 15 degrees counter-clockwise with a small rightward translation:

../../_images/tabby_tiger_cat.jpg

Original Input Image

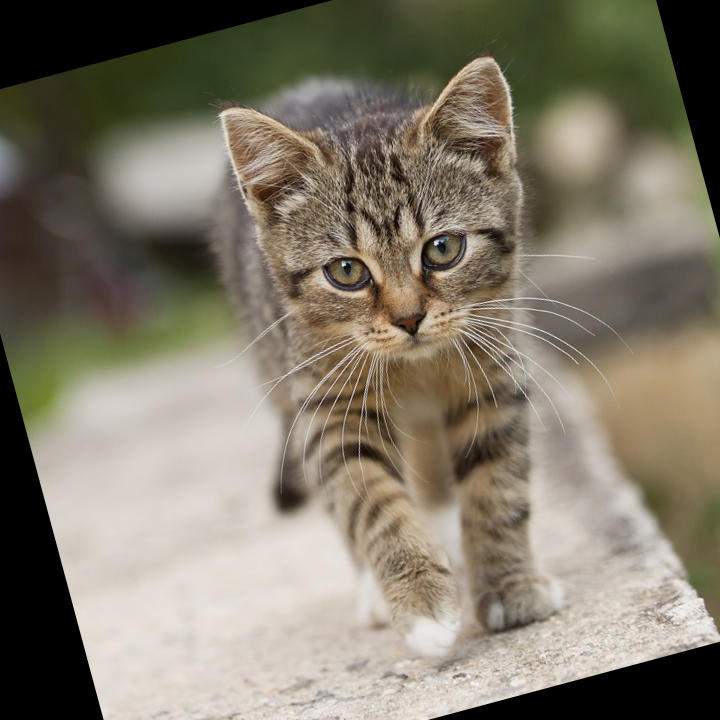

../../_images/cat_warp_affine.jpg

Output: Rotated 15° and shifted right

CV-CUDA Operators Used

Operator

Purpose

cvcuda.warp_affine()

Apply a 2×3 affine transformation matrix to an image with configurable interpolation and border handling
